C Series Marine Gearbox



Model-C300

Features Enhanced Model-C300

  • Oil control clutch engagement .

  • Great varieties and extensive range of application.

  • Carburized and hardened gears.

  • Emergency come-home feature.

  • Rubber block drive.

  • Ratios: 2.04:1   3:1  3.53:1   4.1:1

  • Equipped with SAE No.0 No.1 or 12v 135 or 12v 150 engine type flywheel housing.

  • Positive neutral.

  • Both clutches removable when transmission being attached to engine.

  • Identical performance and ratios for forward or reverse, convenience for twin-engine fitting.

  • Power take-off unit are available.

  • The rated transmission capacity expressed in this catalogue rated transmission capacity are for the continuous duty.

  • (operated continuously at full engine governed speed).

  • The said transmission capacity can be increased with intermediate duty ( full engine power occupying 50% of the working hours), or with light duty(only a comparatively small-sized gearbox to match the engine. If so, please contact us for further information.

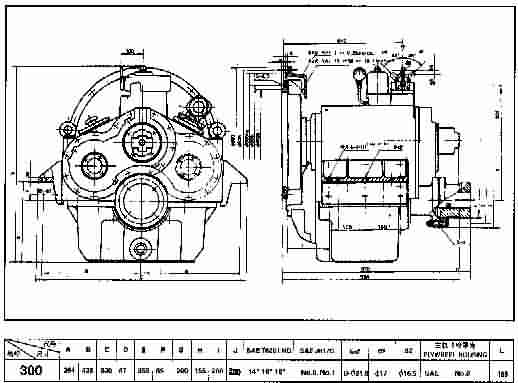

The Outside and Mounting Dimensions
