Variators>>Resolve drawing of structure

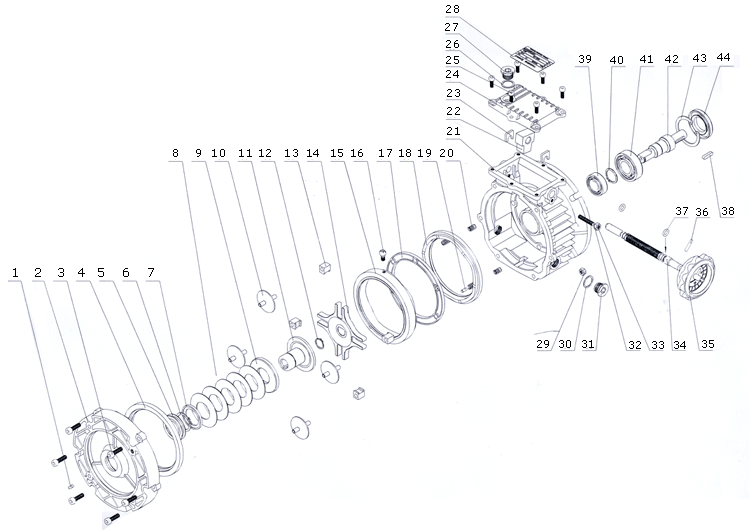

Resolve drawing of structure
1.销
2.联接法兰
3.螺钉
4.固定外轨
5.油封
6.弹性挡圈
7.卡簧支承板
8.蝶形弹簧
9.活动内轨
10.卫星轮
11.固定内轨
12.弹性挡圈
13.滑块
14.卫星架
15.活动外轨
16.球接头
17.滚珠环
18.调整轨
19.定位销
20.压缩弹簧
21.箱体
22.操作块
23.卡板
24.顶盖
25.螺钉
26.橡胶垫片
27.油塞
28.铭牌
29.螺帽
30.橡胶垫片
31.油销
32.限位螺钉
33.螺帽
34.操作螺杆
35.手轮
36.定位销
37.O型圈
38.平键
39.轴承
40.弹性挡圈
41.轴承
42.输出轴
43.弹性挡圈
44.油封
45.操作螺杆
