  Technical Data

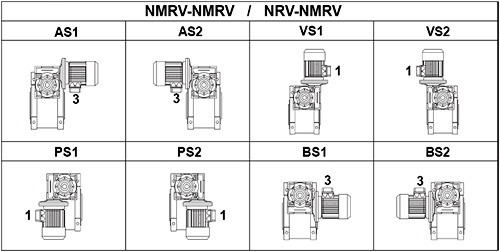

Mounting positions
page 2 of 3
The position of the 1st reducer with respect to the 2nd gear reducer depends on the versions. Unless specified at the time of order, combination groups will be supplied in version BS2.The specified mounting position refers to the 2nd gear reducer.

BACK       1     2    3     NEXT
page 2 of 3
