  TSRV series stainless steel worm gear reducers
EVER-POWER Transmission, a manufacturer of variable speed machinery, gearmotor, worm gear reducer with advanced technology, is a tower of strength in the field of technique renovation. On design, EVER-POWER adopts the three-dimensioned modeling and the finite element analysis, which has shortened the research circle of products, gearmotor, worm gear reducer and guaranteed the reliability of the quality, can provide the transmission resolvable projects with special requirements for the customers much better. The company always promotes the quality improvement endlessly and pursues the target that the customers are satisfied with. It does upmost to meet or exceed the customers' expectation continually and manufactures the high quality products, gearmotor, worm gear reducer, stainless steel worm gear reducer.
page 1 of 2

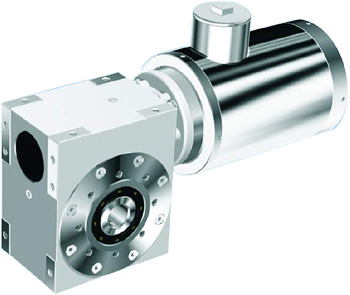

gearmotor
TSRV Series stainless steel worm-gear reducers
TSRV SERIES DIMENSIONS
worm gear reducer
a
b1
t1
A
D1H8
G
G1
H
J
K
L
TSRV040
40
6
20.8(21.8*)
70
ф18(ф19*)
70
78
50
ф75
60
71
TSRV050
50
8
28.3(27.3*)
80
ф25(ф24*)
80
92
60
ф85
70
85
TSRV063
63
8
28.3(31.3*)
100
ф25(ф28*)
950
112
72
ф95
85
103
TSRV075
75
8(10*)
31.3(38.3*)
120
ф28(ф35*)
112.5
120
86
ф115
90
112

M
NH8
N1
O
P1
Q
R
T
V
V1
TSRV040
4-M6×8
ф60
36.5
14-M6×8
ф87)
55
71.5
26
35
35
TSRV050
4-M8×10
ф70
43.5
14-M6×10
ф100
6.4
84
30
40
40
TSRV063
8-M8×14
ф80
53
14-M8×14
ф110
80
102
36
50
50
TSRV075
8-M8×14
ф95
57
14-M0×16
ф114
93
119
40
60
60

B14
H63
H71
H80
H90S
H90L
H100
H112
LA
216
246
279
316
361
470
406
LB
112
122
127
140
140
153
171
LC
114
134
144
176
176
202
231
(*)Nostandard type

Torque Arm
K1
G1
KG
KH
R1
TSRV040
100
14
31.5
ф10
18
TSRV050
100
14
38.5
ф10
18
TSRV063
150
14
49
ф10
18
TSRV075
200
25
47.5
20
30
