TYBZ Synchronous Motors

  • High precision for speed regulation : error within 1/30000, which improves the technology of users products;
  • High performance : The rotor uses rare earth PM material. High magnetic field tensity, big starting torque, small starting current, and wide speed range;

  • Small size and light weight : Its frame size is one to two frame sizes smaller than that of AC asynchronous motor of same HP;

  • Simple and reliable control system : It uses open loop control, which reduces the possible area of fault and the cost. The full automatic control system consisting of inverter and computer has better performance than other types of traditional variable speed motor;

  • High efficient and high power factor, effective in saving energy : it is 5% to 12% more efficient than asynchronous motor of same HP. As the motor does not need the exciting current, the power factor is close to1;

  • Long durability : As a result of reduced current and less heating of motor;

  • Compatibility : It has same frame structure with AC asynchronous motor and can be used to substitute AC asynchronous motor;

  • Wide applicability : It can be used in various tough conditions. It can even be used in the place where running at low speed for a long time or frequent starting is necessary

TYBZ Synchronous Motors Frame 45-71

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
45-1 TYBZ-06-45-4 0.008-0.06 30-220 8-60 240-1800 0.3 0.32 2.5
45-2 TYBZ-06-45-4 0.008-0.06 51-380 8-60 240-1800 0.16 0.32 2.5
45-3 TYBZ-12-45-4 0.016-0.12 51-380 8-60 240-1800 0.3 0.64 2.5
45-4 TYBZ-12-45-4 0.013-0.12 42-380 10-90 300-2700 0.25 0.43 2.5
45-5 TYBZ-12-45-4 0.02-0.12 33.3-200 10-60 300-1800 0.4 0.64 2.5
56-1 TYBZ18-56-2 0.053-0.18 112-380 50-170 3000-10200 0.5 0.17 5
56-2 TYBZ-20-56-2 0.006-0.2 12-380 10-330 600-19800 0.5 0.1 5
63-1 TYBZ-18-63M-4 0.036-0.18 76-380 10-50 300-1500 0.45 1.15 5
71-1 TYBZ-50-71M-4 0.074-0.37 76-380 15-75 450-2250 1.18 1.57 6
71-2 TYBZ-50-71M-4 0.083-0.5 63-380 10-60 300-1800 1.1 2.65 6
71-3 TYBZ-50-71M-4 0.083-0.5 37-220 10-60 300-1800 1.8 2.65 6

TYBZ Synchronous Motors Frame 80

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
80-1 TYBZ-80-80M-2 0.37-0.8 173-380 50-110 3000-6600 1.38 1.16 20
80-2 TYBZ-29-80M-2 0.38-0.74 195-399 65-133 3900-7980 1.21 0.88 20
80-3 TYBZ-39-80M-2 0.39-0.8 185-375 66-134 3960-8040 1.8 0.95 20
80-4 TYBZ-81-80M-2 0.25-0.8 119-380 50-160 3000-9600 1.38 0.8 20
80-5 TYBZ-26-80M-4 0.04-0.26 52-380 15-110 450-3300 0.44 0.76 20
80-6 TYBZ-50-80M-4 0.133-0.5 62-230 72-270 2160-8100 2.1 0.6 20
80-7 TYBZ-75-80M-4 0.12-0.75 61-380 64-400 1920-12000 2 0.6 20
80-8 TYBZ-50-80M-4 0.25-0.5 127-380 20-60 600-1800 0.9 2.65 20
80-9 TYBZ-75-80M-4 0.25-0.75 127-380 20-60 600-1800 1.4 4 20
80-10 TYBZ-50-80M-4 0.03-0.5 23-380 5-82 150-2460 1.14 1.94 20
80-11 TYBZ-75-80M-4 0.15-0.75 76-380 10-50 300-1500 1.9 4.78 20
80-12 TYBZ-75-80M-4 0.225-0.75 60-200 15-50 450-1500 3.2 4.78 20
80-13 TYBZ-75-80M-4 0.112-0.75 57-380 15-100 450-3000 1.43 2.39 20
80-14 TYBZ-110-80M-4 0.22-1.1 76-380 20-100 600-3000 2.3 3.5 20
80-15 TYBZ-120-80M-4 0.22-1.2 34.5-380 10-110 600-3300 2.5 3.47 20
80-16 TYBZ-120-80M-4 0.225-1.2 37.5-200 15-80 450-2400 5 4.8 20
80-17 TYBZ-46-80M-6 0.05-0.46 37.5-330 25-220 500-4400 1 1 20
80-18 TYBZ-55-80M-6 0.055-0.55 38-380 15-150 300-3000 1.8 1.75 20
80-19 TYBZ-75-80M-6 0.075-0.75 38-380 15-150 300-3000 1.5 2.39 20
80-20 TYBZ-110-80M-6 0.058-1.1 20-380 4-75 80-1500 2.8 7 20
80-21 TYBZ-120-80M-6 0.06-1.2 19-380 5-100 100-2000 3 5.73 20
80-22 TYBZ-153-80M-8 0.048-0.15 112-380 16-50 240-750 0.4 1.91 20
80-23 TYBZ-63-80M-100 0.063 380 50 60 0.7 10 20

Frame 90

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
90-1 TYBZ-100-90L-2 0.1-1 38-380 30-300 1800-18000 2.5 0.53 28
90-2 TYBZ-27-90L-4 0.16-0.56 109-380 20-70 600-2100 2.6 2.53 28
90-3 TYBZ-100-90L-4 0.25-1.0 95-380 15-60 450-1800 2.4 5.3 28
90-4 TYBZ-110-90L-4 0.11-1.1 38-380 10-100 300-3000 2.3 3.5 28
90-5 TYBZ-110-90L-4 0.22-1.1 76-380 10-50 300-1500 3 7 28
90-6 TYBZ-110-90L-4 0.37-1.1 127-380 20-60 600-1800 2 5.84 28
90-7 TYBZ-120-90L-4 0.3-1.2 50-200 15-60 450-1800 4.3 6.37 28
90-8 TYBZ-160-90L-4 0.2-1.6 25-200 10-80 300-2400 5.5 6.37 28
90-9 TYBZ-110-90L-4 0.055-1.1 19-380 5-100 150-3000 2.32 3.5 28
90-10 TYBZ-150-90L-4 0.15-1.5 38--380 10-100 300-3000 2.8 4.78 28
90-11 TYBZ-150-90L-4 0.188-1.5 48-380 10-80 300-2400 3.2 5.97 28
90-12 TYBZ-160-90L-4 0.188-1.6 48-380 10-80 300-2400 3.4 6.37 28
90-13 TYBZ-150-90L-4 0.21-1.5 54-380 20-140 600-4200 2.7 3.41 28
90-14 TYBZ-150-90L-4 0.3-1.5 76-380 10-50 300-1500 3.8 9.55 28
90-15 TYBZ-200-90L-4 0.67-2 127-380 20-60 600-1800 4.5 10.61 28
90-16 TYBZ-300-90L-4 0.3-3 38-380 40-400 1200-12000 8.5 2.39 28
90-17 TYBZ-150-90L-6 0.075-1.5 19-380 5-100 100-2000 3.2 7.2 28
90-18 TYBZ-150-90L-6 0.43-1.5 54-188 22-75 430-1500 5.8 9.55 28
90-19 TYBZ-150-90L-6 0.43-1.5 63-220 22-75 430-1500 9.7 9.55 28
90-20 TYBZ-180-90L-6 0.18-1.8 38-380 15-150 300-3000 3.5 5.7 28

Frame 100

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
100-1 TYBZ-160-100L-4 0.4-1.6 50-200 15-60 450-1800 5.2 8.5 40
100-2 TYBZ-220-100L-4 0.22-2.2 38-380 10-100 300-3000 4.2 6.97 40
100-3 TYBZ-220-100L-4 0.28-2.2 48-380 10-80 300-2400 4.4 8.7 40
100-4 TYBZ-295-100L-4 0.66-2.95 84.9-380 15-67 450-2010 6.2 14 40
100-5 TYBZ-180-100L-4 0.6-1.8 127-380 20-60 600-1800 3.8 9.5 40
100-6 TYBZ-264-100L-4 0.88-2.64 127-380 20-60 600-1800 5.5 14 40
100-7 TYBZ-264-100L-4 0.88-2.64 166-498 20-60 600-1800 3.8 14 40
100-8 TYBZ-240-100L-4 0.45-2.4 38-200 15-80 450-2400 8.5 9.55 40
100-9 TYBZ-300-100L-4 0.23-3 29-380 10-130 300-3900 6.2 7.35 40
100-10 TYBZ-240-100L-4 0.3-2.4 48-380 10-80 300-2400 5 9.5 40
100-11 TYBZ-300-100L-4 0.375-3 48-380 10-80 300-2400 6.2 11.94 40
100-12 TYBZ-240-100L-4 0.74-2.4 112-360 22-71 660-2130 4.9 10.76 40
100-13 TYBZ-300-100L-4 0.85-3 107-380 20-71 600-2130 6 13.45 40
100-14 TYBZ-360-100L-4 0.3-3.6 32-380 5-60 150-1800 7.5 19.1 40
100-15 TYBZ-400-100L-4 0.8-4 76-380 10-50 300-1500 8.5 25.47

50

100-16

TYBZ-480-100L-4

1.6-4.8

127-380

20-60

600-1800

10

25.47

50

100-17 TYBZ-300-100L-4 0.3-3 38-380 10-100 300-3000 5.8 9.55 40
100-18 TYBZ-370-100L-4 0.37-3.7 38-380 10-100 300-3000 7.3 11.78 40
100-19 TYBZ-200-100L-4 0.235-2 45-380 20-170 600-5100 3.2 3.75 40
100-20 TYBZ-265-100L-4 0.432-2.65 62-380 29-177 870-5310 6 4.78 40
100-21 TYBZ-285-100L-4 0.75-3.1 92-380 50-206 1500-6180 6.3 4.8 40
100-22 TYBZ-300-100L-4 0.3-3 38-380 30-300 900-9000 6.4 3.18 40
100-23 TYBZ-389-100L-4 0.635-3.89 62-380 29-177 870-5310 8 7 40
100-24 TYBZ-120-100L-6 0.3-1.2 88-352 20-80 400-1600 2.5 7.16 40
100-25 TYBZ-150-100L-6 0.436-1.5 54-188 22-75 430-1500 5.7 9.55 40
100-26 TYBZ-200-100L-6 0.35-2 67-380 17-97 340-1940 3.8 9.8 40
100-27 TYBZ-200-100L-6 0.8-2 152-380 20-50 400-1000 4.5 19.1 40
100-28 TYBZ-225-100L-6 0.375-2.25 63-375 25-150 500-3000 4.8 7.16 40
100-29 TYBZ-243-100L-6 0.552-2.43 46-204 20-88 600-2640 9 8.8 40

Frame 112

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
112-1 TYBZ-300-112M-4 0.85-3 107-380 20-71 600-2130 5.5 13.45  50
112-2 TYBZ-355-112M-4 1.1-3.55 112-360 22-71 660-2130 7 15.92  55
112-3 TYBZ-369-112M-4 1.1-3.69 112-360 22-71 660-2130 7.2 16.55  50
112-4 TYBZ-400-112M-4 0.5-4 48-380 10-80 300-2400 8.4 15.92  50
112-5 TYBZ-520-112M-4 0.39-5.2 29-380 6-80 180-2400 9.5 20.7  55
112-6 TYBZ-400-112M-4 0.67-4 63-380 10-60 300-1800 8.4 21.22  50
112-7 TYBZ-400-112M-4 0.8-4 76-380 10-50 300-1500 9.2 25.5  50
112-8 TYBZ-450-112M-4 1.27-4.5 107-380 20-71 600-2130 8.8 20.18  50
112-9 TYBZ-550-112M-4 0.275-5.5 19-380 5-100 150-3000 11.4 17.51  50
112-10 TYBZ-550-112M-4 1.1-5.5 76-380 10-50 300-1500 12.8 35  50
112-11 TYBZ-200-112M-4 0.294-2 56-380 25-170 750-5100 4.2 3.7  50
112-12 TYBZ-280-112M-4 0.41-2.8 56-380 25-170 750-5100 6 5.2  50
112-13 TYBZ-400-112M-4 0.88-4 90-380 40-200 1200-6000 7 6.4  50
112-14 TYBZ-200-112M-6 0.8-2 152-380 20-50 400-1000 4 19.1  50
112-15 TYBZ-280-112M-6 1.0-2.8 136/380 25-70 500-1400 5 19.1

   50

112-16 TYBZ-264-112M-6 0.22-2.64 32-380 5-60 100-1200 6 21.01  50
112-17 TYBZ-300-112M-6 0.6-3 76-380 10-50 200-1000 8.5 28.64  50
112-18 TYBZ-324-112M-6 0.57-3.24 67-380 17-97 340-1940 6 15.95  50
112-19 TYBZ-340-112M-6 0.439-3.4 50-380 20-155 400-3100 7.2 10.5  50
112-20 TYBZ-360-112M-6 0.36-3.6 38-380 6-60 120-1200 7.8 28.5  50
112-21 TYBZ-368-112M-6 0.63-3.68 67-400 17-102 340-2040 6.8 17.24  50
112-22 TYBZ-400-112M-6 0.67-4 63-380 10-60 200-1200 9.5 31.8  50
112-23 TYBZ-420-112M-6 0.73-4.2 67-380 17-97 340-1940 7.8 20.7  50
112-24 TYBZ-150-112M-8 0.12-1.5 30-380 8-100 120-1500 3 9.55  50
112-25 TYBZ-150-112M-8 0.15-1.5 38-380 20-200 300-3000 2.8 4.78  50
112-27 TYBZ-200-112M-8 0.667-2 127-380 20-60 300-900 3.8 21.2  50
112-28 TYBZ-220-112M-8 0.176-2.2 30-380 8-100 120-1500 4.8 14  50
112-29 TYBZ-300-112M-8 0.24-3 30-380 8-100 120-1500 6.4 19.1  50
112-30 TYBZ-300-112M-8 0.36-3 46-380 6-50 90-750 6.3 38  50
112-31 TYBZ-400-112M-8 0.4-4 38-380 10-100 150-1500 7.9 25.5  50

Frame 132

No.

type

power
kw

voltage
V

frequency
Hz

speed
rpm

current
A

torque
N.m

weight
kg

132-1

TYBZ-497-132S-4

1.54-4.97

112-360

22-71

660-2130

9.1

22.28

  68

132-2

TYBZ-550-132S-4

0.55-5.5

38-380

5-50

150-1500

11

35

 65

132-3

TYBZ-550-132S-4

0.55-5.5

38-380

6-60

180-1800

9.5

29.18

 65

132-4

TYBZ-550-132S-4

0.55-5.5

38-380

10-100

300-3000

9.8

17.5

 65

132-5

TYBZ-550-132S-4

0.69-5.5

48-380

10-80

300-2400

10

21.9

 65

132-6

TYBZ-550-132S-4

0.42-5.5

29-380

10-130

300-3900

9

13.5

 65

132-7

TYBZ-550-132S-4

0.85-5.5

46-299

20-130

600-3900

12

13.5

 70

132-8

TYBZ-625-132S-4

1.94-6.25

112-360

22-71

660-2130

12.3

28

 65

132-9

TYBZ-340-132M-4

1.04-3.4

110-360

26-85

780-2550

6.4

12.73

 65

132-10

TYBZ-750-132M-4

0.94-7.5

48-380

10-80

300-2400

14.8

29.84

 65

132-11

TYBZ-750-132M-4

1.5-7.5

76-380

10-50

300-1500

16.2

48

 75

132-12

TYBZ-750-132M-4

2.5-7.5

127-380

20-60

600-1800

14.9

39.79

 75

132-13

TYBZ-852-132M-4

2.64-8.52

112-360

22-71

660-2130

16.8

38.2

 75

132-14

TYBZ-300-132S-6

0.6-3

76-380

10-50

200-1000

6

28.65

 65

132-15

TYBZ-480-132S-6

0.48-4.8

38-380

6-60

120-1200

10

38

 65

132-16

TYBZ-300-132M-6

0.3-3

38-380

5-50

100-1000

9

28.65

 65

132-17

TYBZ-660-132S-6

0.66-6.6

38-380

6-60

120-1200

13

52

 65

132-18

TYBZ-720-132S-6

2.4-7.2

127-380

50-150

1000-3000

13

23

 65

132-19

TYBZ-750-132M-6

0.75-7.5

38-380

6-60

120-1200

15

59.7

 65

132-20

TYBZ-1100-132M-4

1.1-11

38-380

10-100

300-3000

19.6

35.02

  70

Frame 160-280

No. type power
kw
voltage
V
frequency
Hz
speed
rpm
current
A
torque
N.m
weight
kg
160-1 TYBZ-1100-160L-4 2.2-11 76-380 10-50 300-1500 20.4 70 140
160-2 TYBZ-1100-160L-4 1.1-11 38-380 10-100 300-3000 17.6 35.02 140
160-3 TYBZ-1500-160L-4 3.0-15 76-380 10-50 300-1500 31 95.5 140
160-4 TYBZ-1800-160L-4 1.8-18 38-380 5-50 150-1500 38 114.6 140
160-5 TYBZ-2200-160L-4 2.2-22 38-380 5-50 150-1500 46 140 140
160-6 TYBZ-2200-160L-4 2.2-22 38-380 10-100 300-3000 48 70 140
180-1 TYBZ-480-180M-8 0.48-4.8 38-380 6-60 90-900 10 51 180
180-2 TYBZ-550-180M-8 0.48-4.8 38-380 5-50 90-750 10 61 180
180-3 TYBZ-1500-180M-8 1.2-15 30-380 8-100 120-1500 31.6 96 180
180-4 TYBZ-1800-180L-8 1.125-18 24-380 6.25-100 94-1500 38 115 180
180-5 TYBZ-1080-180M-30 2.7-10.8 57-228 7.5-30 75-300 40 342 180
200-1 TYBZ-3000-200L-4 6.0-30 76-380 10-50 300-1500 53 191 200
225-1 TYBZ-2200-225S-8 1.37-22 24-380 6.25-100 94-1500 47 140 282
225-2 TYBZ-3000-225S-8 1.87-30 24-380 6.25-100 94-1500 63.3 191 295
225-3 TYBZ-3700-225S-8 2.3-37 24-380 6.25-100 94-1500 80 236  300
280-1 TYBZ-7500-280S-4 15-75 76-380 10-50 300-1500 158 477.5  510

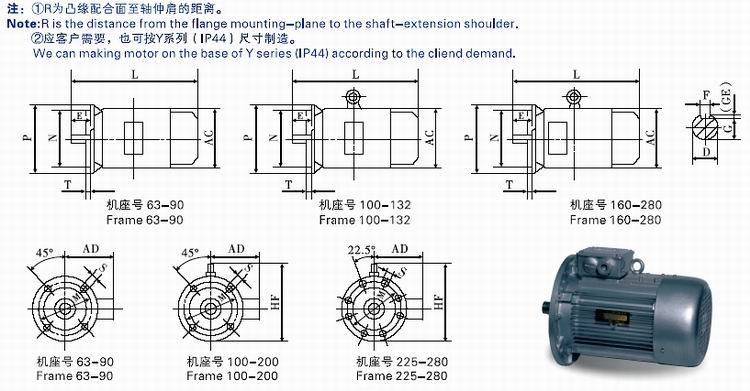

B5 Flanges
Mounting base without feet and endshield with flange(B5)
Mounting Base Flange No.

Poles

Mounting dimensions Overall dimensions
D E F G M N P R S T flange holes AC AD HF L
63M FF115 2,4 11 23 4 8.5 115 95 140 0 7 3 4 130 70 130 230
71M FF130 2,4,6 14 30 5 11 130 110 160 0 7 3.5 4 145 80 145 255
80M FF165 2,4,6 19 40 6 15.5 165 130 200 0 12 3.5 4 175 145 185 295
90S FF165 2,4,6,8 24 50 8 20 165 130 200 0 12 3.5 4 195 155 195 320
90L FF165 2,4,6,8 24 50 8 20 165 130 200 0 12 3.5 4 195 155 195 345
100L FF215 2,4,6,8 28 60 8 24 215 180 250 0 15 4 4 215 180 245 385
112M FF215 2,4,6,8 28 60 8 24 215 180 250 0 15 4 4 240 190 265 400
132S FF265 2,4,6,8 38 80 10 33 265 230 300 0 15 4 4 275 210 315 470
132M FF265 2,4,6,8 38 80 10 33 265 230 300 0 15 4 4 275 210 315 510
160M FF300 2,4,6,8 42 110 12 37 300 250 350 0 19 5 4 330 255 385 615
160L FF300 2,4,6,8 42 110 12 37 300 250 350 0 19 5 4 330 255 385 670
180M FF300 2,4,6,8 48 110 14 42.5 300 250 350 0 19 5 4 380 280 385 700
180L FF300 2,4,6,8 48 110 14 42.5 300 250 350 0 19 5 4 380 280 430 740
200L FF350 2,4,6,8 55 110 16 49 350 300 400 0 19 5 4 420 305 430 770
225S FF400 4,8 60 140 18 53 400 350 450 0 19 5 8 470 335 480 815
225M FF400 2 55 110 16 49 400 350 450 0 19 5 8 470 335 535 820
225M FF400 4,6,8 60 140 18 53 400 350 450 0 19 5 8 470 335 535 845
250M FF500 2 60 140 18 53 500 450 550 0 19 5 8 510 370 535 910
250M FF500 4,6,8 65 140 18 58 500 450 550 0 19 5 8 510 370 595 910
280S FF500 2 65 140 18 58 500 450 550 0 19 5 8 580 410 650 985
280S FF500 4,6,8 75 140 20 67.5 500 450 550 0 19 5 8 580 410 650 985
280M FF500 2 65 140 18 58 500 450 550 0 19 5 8 580 410 650 1035
280M FF500 4,6,8 75 140 20 67.5 500 450 550 0 19 5 8 580 410 650 1035

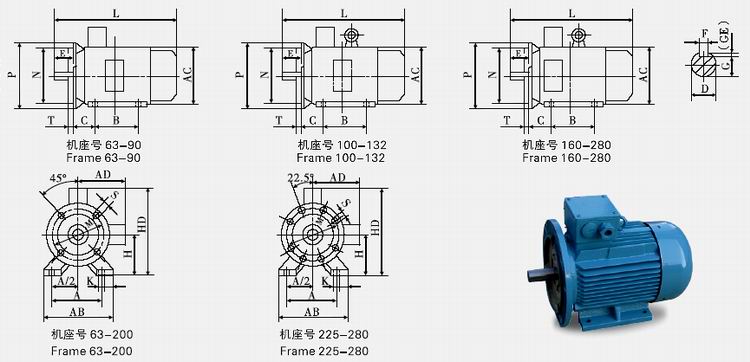

Flanges B35

Mounting base with feet and endshield with flange(B35)

Mounting base

Flang No.

Poles

Mounting dimensions

Overall dimensions

A

A/2

B

C

D

E

F

G

H

K

M

N

P

R

S

T

flange holes

AB

AC

AD

HD

L

63M

FF115

2,4

100

50

80

40

11

23

4

8.5

63

7

115

95

140

0

10

3

4

135

130

70

180

230

71M

FF130

2,4,6

112

56

90

45

14

30

5

11

71

7

130

110

160

0

10

3.5

4

150

145

80

195

255

80M

FF165

2,4,6

125

62.5

100

50

19

40

6

15.5

80

10

165

130

200

0

12

3.5

4

165

175

145

220

295

90S

FF165

2,4,6,8

140

70

100

56

24

50

8

20

90

10

165

130

200

0

12

3.5

4

180

195

155

250

320

90L

FF165

2,4,6,8

140

70

125

56

24

50

8

20

90

10

165

130

200

0

12

3.5

4

180

195

155

250

345

100L

FF215

2,4,6,8

160

80

140

63

28

60

8

24

100

12

215

180

250

0

15

4

4

205

215

180

270

385

112M

FF215

2,4,6,8

190

95

140

70

28

60

8

24

112

12

215

180

250

0

15

4

4

230

240

190

300

400

132S

FF265

2,4,6,8

216

108

140

89

38

80

10

33

132

12

265

230

300

0

15

4

4

270

275

210

345

470

132M

FF265

2,4,6,8

216

108

178

89

38

80

10

33

132

12

265

230

300

0

15

4

4

270

275

210

345

510

160M

FF300

2,4,6,8

254

127

210

108

42

110

12

37

160

15

300

250

350

0

19

5

4

320

330

255

420

615

160L

FF300

2,4,6,8

254

127

254

108

42

110

12

37

160

15

300

250

350

0

19

5

4

320

330

255

420

670

180M

FF300

2,4,6,8

279

139.5

241

121

48

110

14

42.5

180

15

300

250

350

0

19

5

4

355

380

280

455

700

180L

FF300

2,4,6,8

279

139.5

279

121

48

110

14

42.5

180

15

300

250

350

0

19

5

4

355

380

280

455

740

200L

FF350

2,4,6,8

318

159

305

133

55

110

16

49

200

19

350

300

400

0

19

5

4

395

420

305

505

770

225S

FF400

4,8

356

178

286

149

60

140

18

53

225

19

400

350

450

0

19

5

8

435

470

335

560

815

225M

FF400

2

356

178

311

149

55

110

16

49

225

19

400

350

450

0

19

5

8

435

470

335

560

820

225M

FF400

4,6,8

356

178

311

149

60

140

18

53

225

19

400

350

450

0

19

5

8

435

470

335

560

845

250M

FF500

2

406

203

349

168

60

140

18

53

250

24

500

450

550

0

19

5

8

490

510

370

615

910

250M

FF500

4,6,8

406

203

349

168

65

140

18

58

250

24

500

450

550

0

19

5

8

490

510

370

615

910

280S

FF500

2

457

228.5

368

190

65

140

18

58

280

24

500

450

550

0

19

5

8

550

580

410

680

985

280S

FF500

4,6,8

457

228.5

368

190

75

140

20

67.5

280

24

500

450

550

0

19

5

8

550

580

410

680

985

280M

FF500

2

457

228.5

419

190

65

140

18

58

280

24

500

450

550

0

19

5

8

550

580

410

680

1035

280M

FF500

4,6,8

457

228.5

419

190

75

140

20

67.5

280

24

500

450

550

0

19

5

8

550

580

410

680

1035

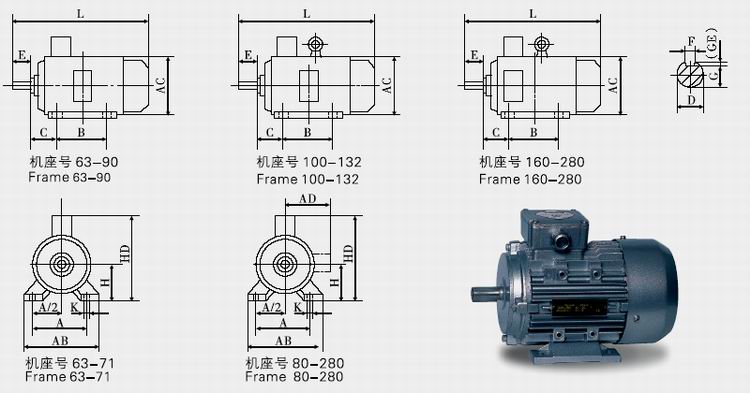

Flange B3

Mounting base with feet and endshield without flange(B3)
    Mounting dimensions Overall dimensions
Mounting base Poles A A/2 B C D E F G H K AB AC AD HD L
63M 2,4 100 50 80 40 11 23 4 8.5 63 7 135 130 70 180 230
71M 2,4,6 112 56 90 45 14 30 5 11 71 7 150 145 80 195 255
80M 2,4,6 125 62.5 100 50 19 40 6 15.5 80 10 165 175 145 220 295
90S 2,4,6,8 140 70 100 56 24 50 8 20 90 10 180 195 155 250 320
90L 2,4,6,8 140 70 125 56 24 50 8 20 90 10 180 195 155 250 345
100L 2,4,6,8 160 80 140 63 28 60 8 24 100 12 205 215 180 270 385
112M 2,4,6,8 190 95 140 70 28 60 8 24 112 12 230 240 190 300 400
132S 2,4,6,8 216 108 140 89 38 80 10 33 132 12 270 275 210 345 470
132M 2,4,6,8 216 108 178 89 38 80 10 33 132 12 270 275 210 345 510
160M 2,4,6,8 254 127 210 108 42 110 12 37 160 15 320 330 255 420 615
160L 2,4,6,8 254 127 254 108 42 110 12 37 160 15 320 330 255 420 670
180M 2,4,6,8 279 139.5 241 121 48 110 14 42.5 180 15 355 380 280 455 700
180L 2,4,6,8 279 139.5 279 121 48 110 14 42.5 180 15 355 380 280 455 740
200L 2,4,6,8 318 159 305 133 55 110 16 49 200 19 395 420 305 505 770
225S 4,8 356 178 286 149 60 140 18 53 225 19 435 470 335 560 815
225M 2 356 178 311 149 55 110 16 49 225 19 435 470 335 560 820
225M 4,6,8 356 178 311 149 60 140 18 53 225 19 435 470 335 560 845
250M 2 406 203 349 168 60 140 18 53 250 24 490 510 370 615 910
250M 4,6,8 406 203 349 168 65 140 18 58 250 24 490 510 370 615 910
280S 2 457 228.5 368 190 65 140 18 58 280 24 550 580 410 680 985
280S 4,6,8 457 228.5 368 190 75 140 20 67.5 280 24 550 580 410 680 985
280M 2 457 228.5 419 190 65 140 18 58 280 24 550 580 410 680 1035
280M 4,6,8 457 228.5 419 190 75 140 20 67.5 280 24 550 580 410 680 1035



    ?/SPAN>metering pump motor                  ?/SPAN>oil pump motor

        ?/SPAN>heated draw roller                        ?/SPAN>godet motor

    ?/SPAN>roller motor                                    ?/SPAN>winder motor

        ?/SPAN>DTY machine                                ?/SPAN>texturing machine

        ?/SPAN>two-for-one twister                        ?/SPAN>warp-knitting machine

    ?/SPAN>combing machine                         ?/SPAN>ribbon lap machine

        ?/SPAN>knitting machine                            ?/SPAN>

TYBZ Synchronous Motors          TYGZ Synchronous Motors

Back

E-mail: Shen@china-reducers.com
