Shaft input worm-gear speed reducer

EVER-POWER Transmission, a manufacturer of variable speed machinery, RV gearbox, bevel gearbox with advanced technology, is a tower of strength in the field of technique renovation. On design, EVER-POWER adopts the three-dimensioned modeling and the finite element analysis, which has shortened the research circle of products, RV gearbox, bevel gearbox and guaranteed the reliability of the quality, can provide the transmission resolvable projects with special requirements for the customers much better. The company always promotes the quality improvement endlessly and pursues the target that the customers are satisfied with. It does upmost to meet or exceed the customers' expectation continually and manufactures the high quality products, RV gearbox, bevel gearbox.
page 1 of 1

RV gearbox
NRV
030
040
050
063
075
090
110
130
B
20
23
30
40
50
50
60
80
D2
Φ9j6
Φ11j6
Φ14j6
Φ19j6
Φ24j6
Φ24j6
Φ28j6
Φ30j6
G2
51
60
74
90
105
125
142
162
G3
45
53
64
75
90
108
135
155
I
30
40
50
63
75
90
110
130
b2
3
4
5
6
8
8
8
8
f2
-
-
M6
M6
M8
M8
M10
M10
t2
10.2
12.5
16
21.5
27
27
31
33

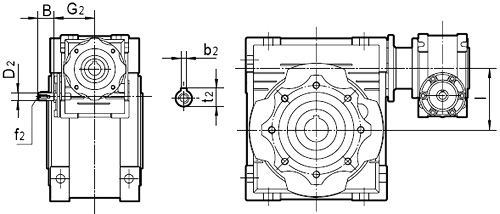

Combination worm gear unit
bevel gearbox
NRV-NMRV
030-040
030-050
030-063
040-075
040-090
050-110
063-130
B
20
23
30
40
50
50
60
D2
Φ9j6
Φ9j6
Φ9j6
Φ11j6
Φ11j6
Φ14j6
Φ19j6
G2
51
51
51
60
60
74
90
I
10
20
33
35
50
60
67
b2
3
3
3
4
4
5
6
f2
-
-
-
-
-
M6
M6
t2
10.2
10.2
10.2
12.5
12.5
16
21.5


Product Description Contents
1. Guide of type selection
2. Technical data
  1) Service factor
2) The admissible radial load on the shaft
3) Efficiency & Irreversibility character
4) Mesh parameter
5) Lubrication
6) Installation
7) Critical application
8) Motor coupling
9) PC features and mounting
10) Mounting positions
11) Direction of rotation
12) Performance parameter

3. Notice for ordering
4. Exploded view & name
